RS-901AS Auto Transistor/Bridge Rectifiers/ Hall Sensor Components Lead Trimming Machine

Product Categories
RKENS TECHNOLOGY CO.,LTD
Contact Now

RS-901AS Auto Transistor/Bridge Rectifiers/ Hall Sensor Components Lead Trimming Machine

Brand Name : RKENS

Model Number : RS-901A

Place of Origin : China

MOQ : 1SET

Payment Terms : T/T, Paypal,Western Union

Delivery Time : 3-5 days

Packaging Details : Carton box or Wooden case

Name : Automatic radial lead cutter

Usage : Cut transistors, bridge, led,capacitor,etc

Type : Full Automatic

Feed type : automatic

Contact Now

Auto Transistor Bridge Rectifiers Components Lead Trimming Machine

Intro:

Machine is suitable for cutting various transistors, TO-126, TO-220. To-126 and 220 transistors can not use same vibration bowl feeder. Auto feeding and cutting leads to same length.

Cut length is adjustable. Cut length: >=2.8mm +-0.3mm

Suitable:

The machine is suitable for cutting loose radial components,such as capacitor,LED, triode,inductor,etc.

Cutter and vibration bowl can work together or separately. Cutter can work for various radial components.

Feeder bowl is customized according to components.

Lead Cutting Machine Specification:

Model RS-901AS
Name Auto Transistor Bridge Rectifiers Components Lead Trimming Machine
Voltage AC 220V/110V 50hz 60Hz
Size 1050 x 1100 x 650mm
Weight 125KG
Efficiency 6000-8000 PCS/H
Package Wooden case, 125KG

Features:

1.It is suitable for cutting radial parts of bulk radial components, which is suitable for mass production and saves manpower.

2.Special cutting method, the use of Japanese steel imports of knives, long life, easy adjustment.

3.The cutting foot is of high precision and can be cut to 2.5mm at minimum

4.The controller adopts Japanese electronic component, with long service life and stable feeding.

5.Motors and electrical parts are all from Taiwan.

6.Electric and air combination, good feeding effect, fast speed.

7.It is used in combination with the feeding tray, and can be used separately.

8.The body and feeding plate are split double positioning mode, which can avoid collision at the interface.

9. Feeding plate vibration spring plate adopts imported fiber board, long life, not easy to break, aging.

10.The feeding tray is used for the purposes of 3-, phi, 10 capacitors, led, LED

Cutting samples:

RS-901AS Auto Transistor/Bridge Rectifiers/ Hall Sensor Components Lead Trimming Machine

RS-901AS Auto Transistor/Bridge Rectifiers/ Hall Sensor Components Lead Trimming Machine

RS-901AS Auto Transistor/Bridge Rectifiers/ Hall Sensor Components Lead Trimming Machine

RS-901AS Auto Transistor/Bridge Rectifiers/ Hall Sensor Components Lead Trimming Machine

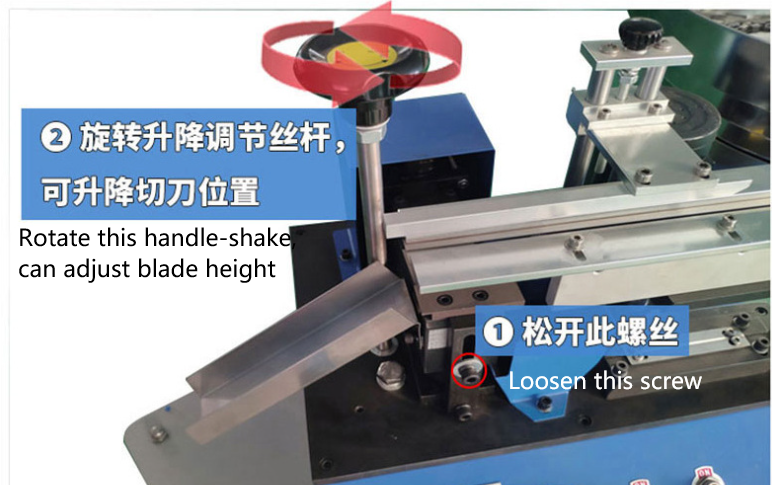

Blade

RS-901AS Auto Transistor/Bridge Rectifiers/ Hall Sensor Components Lead Trimming Machine
